Microlog affordable Standard DC and AC Distribution Panels offers Best Quality/Price ratio on the market and will fill the needs for DC system or adding AC power in your boat or RV:
|
Our flexible, fit your needs, solution:
We wanted to offer the best quality at an affordable price in our standard line of panels.

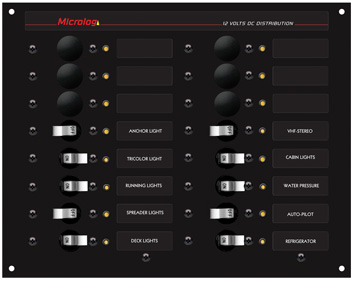

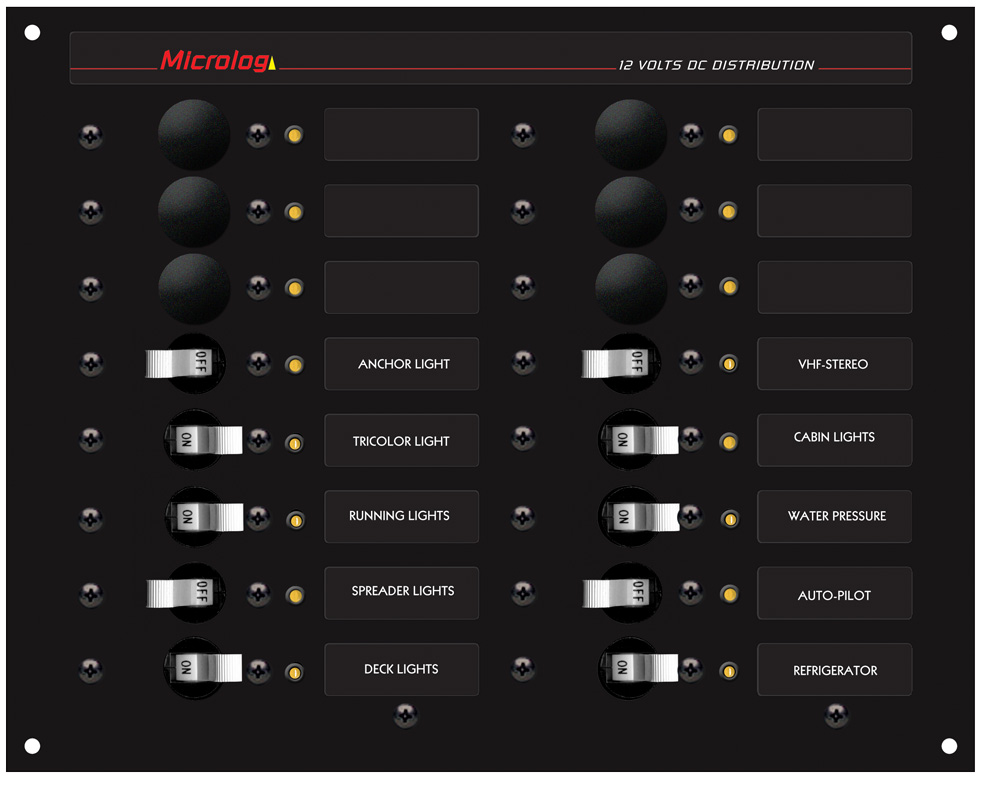

You can combine, side-to-side, many affordable panels to fit your total circuits requirements and available space.
Our panels comes with standard values breakers but you can exchange them or add your choices of breakers values to fit your exact needs. Most other manufacturers do not offer this flexibility.
|
 Panels Features:
• Made out of 5052 Aluminum
• Small physical format for easy installation or refit
• Black Polyurethane paint
• High quality Marine Grade Carlingswitch Breakers
• Include Power and Reverse Polarity Indicators (LEDs) on AC panels
• Available without LED's on "-ASL" version
• Spare positions on all panels
• Integrated Negative or Neutral + Ground (AC) Bus Bars
• Tinned marine wiring
• Stainless steel hardware for marine environment
• Easy to install and operate
• Two year limited warranty
• Best Quality / Price ratio on the market
|
|

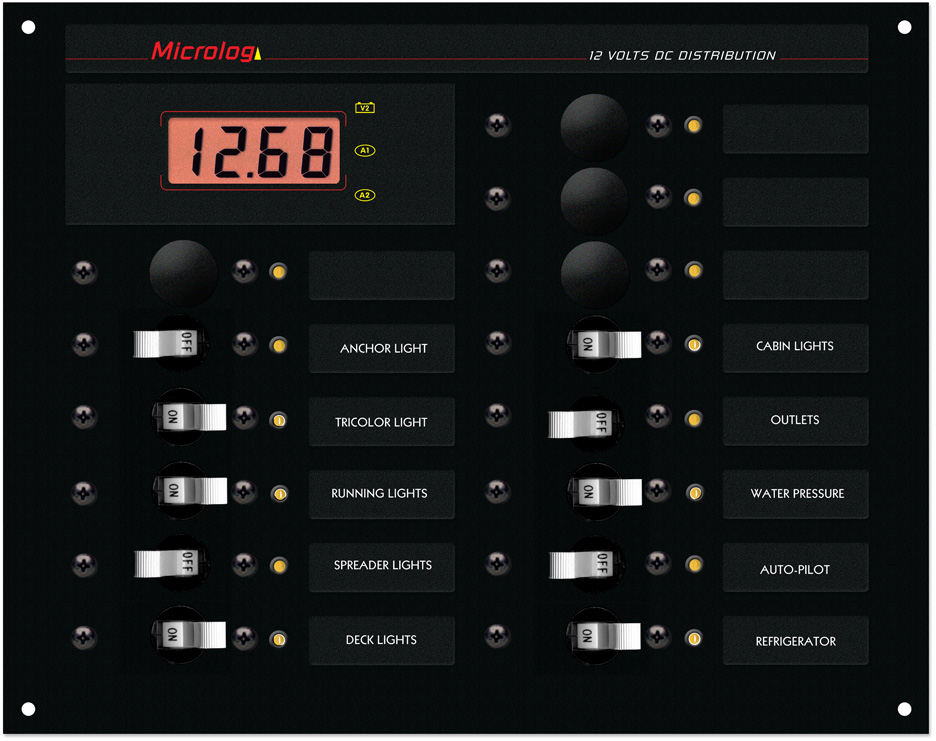

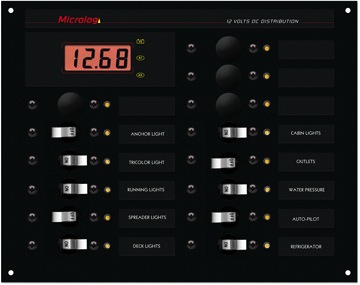

NEW>>>14DC-DMM-ASL DC Panel with digital instrument:
The 14DC-DMM-ASL model include a DMM-4 for voltage on 2 batteries, current consumption with panel shunt and extra current input for consumption, charge or NET current flowing to batteries (requires optional SWK-105 or SWK-505 shunt kit).
You can add breakers or exchange them with your choices of breakers values to fit your needs and all circuits indicators LED's.
You can combine side-to-side with 8AC-ASL or 8DC-ASL to fit your circuits requirements
|
|
Includes:
Voltmeter-Ammeter with Red Backlight Display
Voltage on 2 battery banks
2 current inputs
Panel Current Consumption shunt
10 Breakers, 4-5A, 5-10A, 1-15A
4 spare positions
Negative Bus bar
14 yellow Power LED lignt
30 DC labels kit
2 x ring-connector fuses
Dimensions: 7.5" x 9.5"
14DC-DMM-ASL DC Panel:
US$ 419.99
See Breakers and Current Shunt kits options below: |
 |

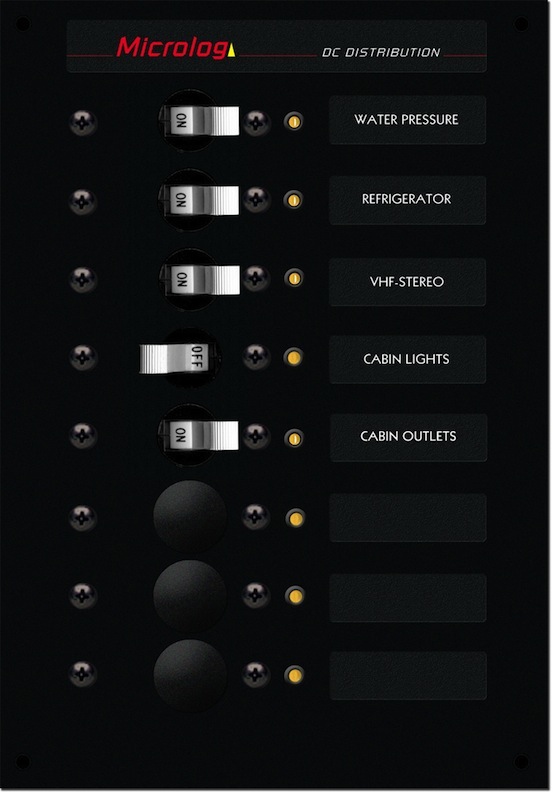

8DC-ASL DC Panels:
| Includes:
5 Breakers, 2-5A, 2-10A, 1-15A
3 spare positions
Negative Bus bar
8 yellow Power LED lignt
30 DC labels kit
Dimensions: 7.5" x 5.25"
|
 |
8DC-ASL DC Panel:
US$ 189.99
|
|
8AC-ASL AC Panels:
Includes:
Dual 30 Amp Breaker
3 x 15 Amp Breakers
3 spare positions
Ground + Neutral Busbars
7 yellow Power LED lignt
1 Red Reverse LED Polarity indicator lignt
30 AC labels kit
Dimensions: 7.5" x 5.25"
|
 |
8AC-ASL Panel:
US$ 199.99
|
|
5DC-ASL DC Panels:
| Includes:
4 Breakers, 1-5A, 2-10A, 1-15A
1 spare position
Negative Bus bar
5 yellow Power LED lignt
30 DC labels kit
Dimensions: 5.25" x 5.25"
|
 |
5DC-ASL DC Panel:
US$ 154.99
|
|
5AC-AS and 5AC-ASL AC Panels:
Includes:
Dual 30 Amp Breaker
2 x 15 Amp Breakers
1 spare position
Ground + Neutral Busbars
4 yellow Power LED lignt
1 Red Reverse LED Polarity indicator lignt
30 AC labels kit
Dimensions: 5.25" x 5.25"
|
 |
5AC-ASL Panel:
US$ 164.99
|
|
|
Standard "A" style breakers from Carling Technologies:
Standard Magnetic-Hydraulic Circuit Breakers for our Marine/RV Standard and Deluxe panels.
Features and specs:
Single or Dual-Pole Magnetic-Hydraulic Type Breakers
White handles
250 VAC, 50/60 HZ, or 80VDC MAX
#8-32 screws for 5-30 Amp values, #10-32 screws for 40 or 50 Amps
Stock Values:
|
|
|
BKA-5: 5 Amps marine breaker: |
US$ 14.99
|
|
 |
BKA-10: 10 Amps marine breaker:
|
US$ 14.99
|
|
|
BKA-15: 15 Amps marine breaker:
|
US$ 14.99
|
|
|
BKA-20: 20 Amps marine breaker:
|
US$ 14.99
|
|
|
BKA-30: 30 Amps marine breaker:
|
US$ 14.99
|
|
|
BKA-50: 50 Amps marine breaker:
|
US$ 14.99
|
|
 |
BKA-2-30: DUAL 30 Amps marine breaker: |
US$ 34.99
|
|
|
BKA-2-50: DUAL 50 Amps marine breaker: |
US$ 39.99
|
|
|
Shunt and Wiring kits: A shunt is needed in order to measure amps with battery monitor. A shunt is an accurate, very low resistance resistor which is placed "in line" with the wire carrying the current to be measured. It is usually placed in the negative wire from the battery bank, such that all the current going into the battery (charging) or out (discharging) must pass through it. Connected in this way it will be set up to monitor "NET" amps in and out of the battery. (It also could be placed in series with the negative wire coming from a solar array--or other charging source--in which case it would measure only the solar array or wind current. The shunt needs to be placed near the batteries; since these wires carry very high currents the wires from the batteries must be kept short to minimize electrical losses.
|
The SWK-105 Shunts and Wiring kit is required if you need to measure current up to 100 AMPS.
For systems with maximum current 65 amps continuous with no overloads, or 50 amps continuous with overload to 100 amps for 8 seconds max. These are suitable for small systems, or for most applications where you want to measure only solar or wind turbine input current. It allows "amps" readings as low as 0.1 Amp.
Kit includes:
-100 Amp. Marine Grade Shunt
-20 feet PVC jacketed, tinned, flexible marine grade wire for exact calibration of your instrument
-Connectors to shunts and Brass screws
Shunts Specifications:
|
|
- Continuous Current limit:
|
65 Amp.
|
|
|
100 Amp.,8 sec/min. MAX
(Derating as ambiant temperature rise)
|
|
|
2.00" L. x 1.25" W. x 1.75" D
5,1 cm x 3,2 cm x 4,4 cm.
|
|
US$ 46.49
|
|
The SWK-505 Shunts and Wiring kit is required if you need to measure current up to 500 AMPS.
For systems with maximum current 330 amps continuous with no overloads, or 250 amps continuous with overload to 500 amps for 8 seconds max. These are suitable for high current Inverters consumption, charging alternator, solar panels, wind turbines and NET Amps. It allows "amps" readings as low as 1 Amp.
Kit includes:
-500 Amp. Marine Grade Shunt
-25 feet PVC jacketed, tinned, flexible marine grade wire for exact calibration of your instrument
-Connectors to shunts and Brass screws
Shunts Specifications:
|
|
- Continuous Current limit:
|
330 Amp.
|
|
|
500 Amp.,8 sec/min. MAX
(Derating as ambiant temperature rise)
|
|
|
3.25" L. x 1.75" W. x 1.75" D
8,2 cm x 4,4 cm x 4,4 cm.
|
|
US$ 58.49
|
|
Spares In-Line Ring Connector-Fuses:
Ring-Connector-Fuse are required to protect battery wiring to the DMM monitor. They are included with 14DC-DMM-ASL DC Panel, but spares can be usefull. |
US$ 3.00
|
|
|
